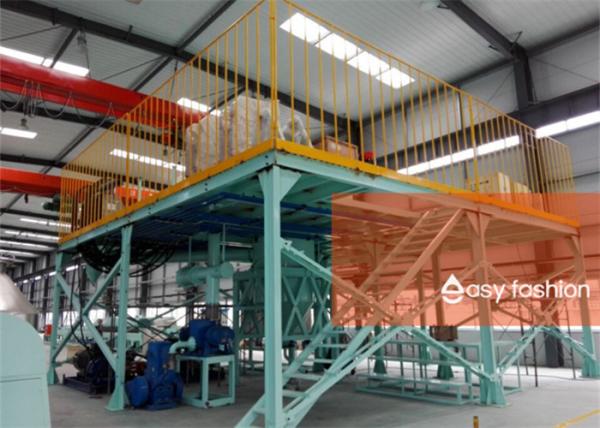

30kg Water Atomization Metal Powder Atomization Equipment for Copper
Overview
The water atomization powder manufacturing equipment is a mature technology in powder metallurgy industry. This kind of powder production machine utilizes high-pressure water flow to atomize molten metal into powder particles. It is a kind of equipment with lower production cost. The process is simple and the technology is easy to master. It’s highly recommended for production of iron powder, copper powder, stainless steel powder and alloy powder.
Our water atomization powder manufacturing equipment produces 10~1,000kg powder per batch. It’s also can produce alloy powders, such as iron-based powder, nickel-based powder, copper-based powder, silver-based powder, etc.. Moreover, customized equipment is also available to cater to customer’s specific requirements on batch capacity and particle size.
Features
The atomized powder by the equipment is irregular with relatively high content of oxygen. Oxygen content can be reduced by the subsequent reduction process.
We also offer the whole water atomizing production line, including water atomization powder manufacturing equipment, reduction furnace, nitrogen circulating system, ball mill machine, sieving machine, mixing machine etc..
Specifications
| Model |
EFSWH-30 |
EFSWH-50 |
EFSWH-100 |
EFSWH-300 |
EFSWH-500 |
EFSWH-1000 |
|
High-pressure water pressure
(MPa)
|
30~120 |
| High-pressure water flow (L/min) |
50~800 |
| Furnace weight (kg) |
30 |
50 |
100 |
300 |
500 |
1000 |
| Highest melting temperature°C |
1750 |
| Melt heating power (kW) |
50 |
100 |
160 |
300 |
400 |
600 |
| Temperature measuring method |
Infrared thermometer, WRe5.26 |
| Tundish heating power (kW) |
20~45 |
| Power supply |
3 phases, 380V, 50Hz |
| Installed total power (kW) |
Based on different capacity and configuration |
| Cooling water flow (L/min) |
150 |
300 |
400 |
700 |
| Cooling water device |
Fan cooling tower, water cooling unit, heat exchanger |
| Soft water flow (m3/h) |
6~20 |
| Control mode |
Industrial control computer or PLC |
| Operation interface |
Touch-tone or Touch-screen |
| Data recording |
12 data-curve recording, LCD monitoring display |
|
Appearance size
(LxWxH) (mm)
|
7500x4000x6500 |
7500x4200x6500 |
8200x5200x6500 |
9200x6500x6500 |
9500x6500x6500 |
10000x7000x6500 |
